SPECIFICATION
|

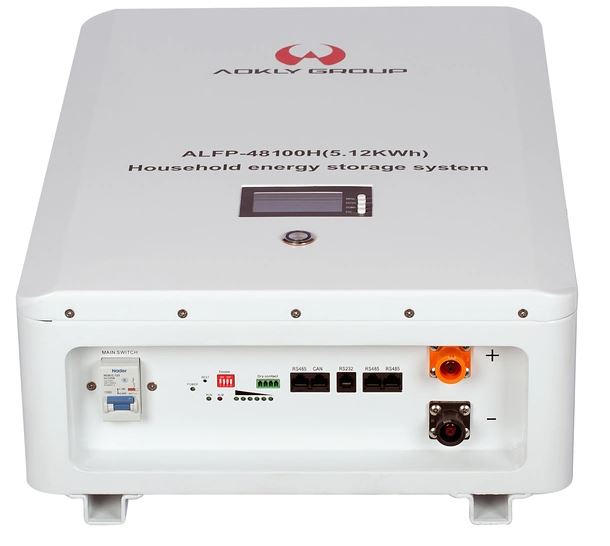

Aokly ALFP-48100H (51.2V 100Ah)
|
|
Battery cell type
|
LiFePO4 battery
|
Battery Module
|
16pcs parall connection max
|
Normal Capacity(25ºC,0.2C)
|
5.12kWh
|
|
Normal Voltage(dc)
|
|
|
Voltage window(dc)
|
51.2V~58.4V
|
|
Dimension(W/D/H)
|
600*442*170mm
|
|
Weight(NW Kg)
|
50
|
|
Normal charge/discharge current
|
50
|
|
Max.charge/discharge current
|
100
|
|
Cycle life(+35ºC 0.5C)
|
≥6000 times @80%DOD
|
Storage temperature
|
0~+40ºC
|
Safety standard
|
IEC 62109-1&-2, IEC 62477, CE-EMC
|
IP degree
|
IP30
|
Communication function
|
CANbus, Modbus
|
PROTECTION
|
|
|
Protection
|
Overcharge Protection,Overdischarge Protection,Overcurrent Protection ,
Shortcircuit Protection,Overtemperature Protection
|
AMBIENT
|
|
|
Working Temperature
|
Charge:0~55ºC ;Discharge:-20~60ºC
|
Humidity
|
0~98%
|
