Descripción

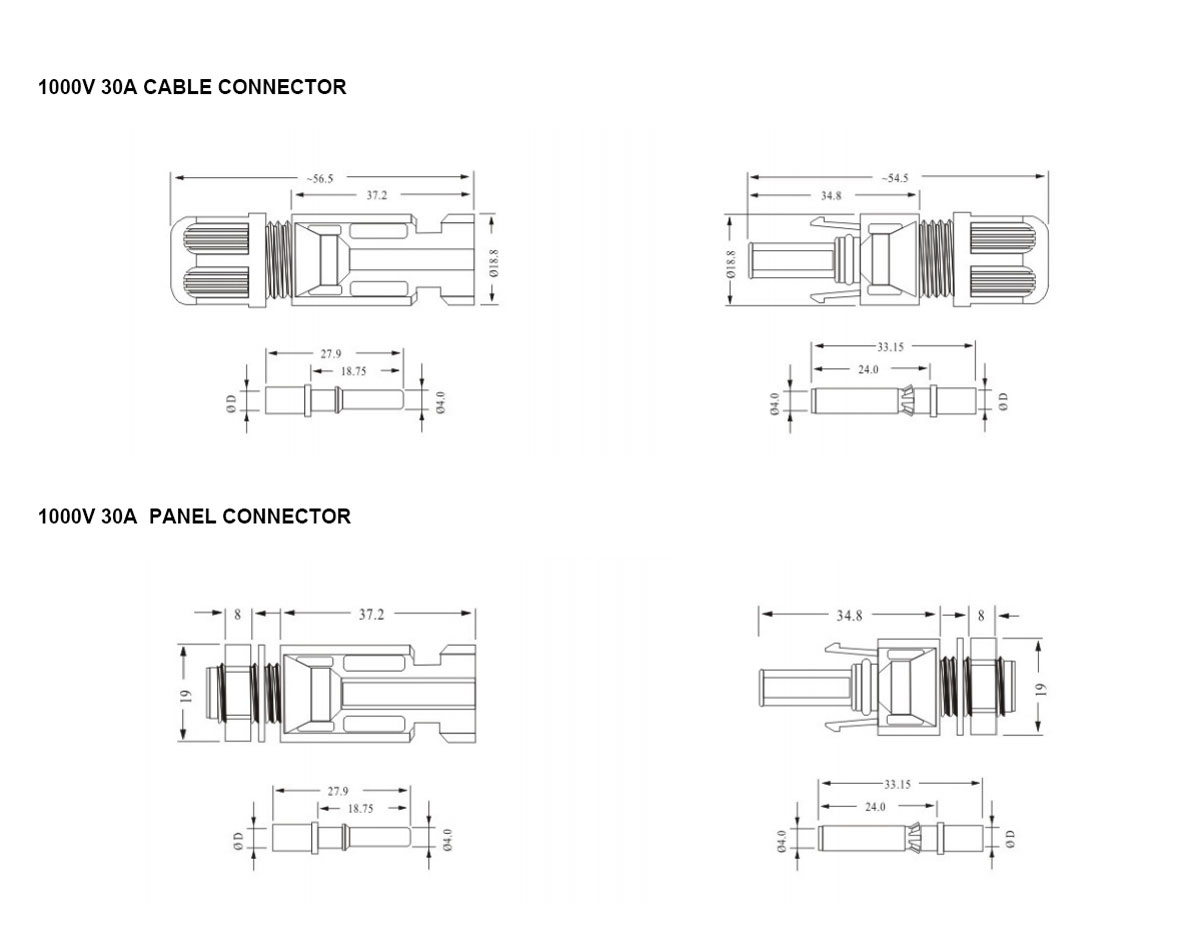

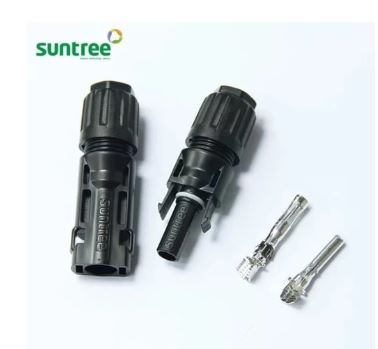

Suntree 1000V MC4 Connectors Specifications

• Type: Solar

• Application: solar power IP67 cable connector solar

• Gender: Male & Female IP67 cable connector solar

• Rated current: 30A

• Withstanding Voltage: 1000vdc of IP67 cable connector solar

• Contact Resistance: ≤0.3mΩ

• Protection class: Class II

• Temperature Range: -40 C~ 90C

• Protection Degree: IP67 IP67 cable connector solar

• Unmating Force: 200 Newton IP67 cable connector solar

• Contact material: Copper, silver plated of IP67 cable connector solar

• Connectors supplied with this kit are for use with wire size AWG # 10 or AWG # 12 with outer insulation diameter of 3 – 6 mm

• Contact diameter -4 mm

• Maximum rated current – 30 A

• Maximum system voltage – 1000V

• Degree of ingress protection when connected and properly locked – IP67

• Temperature range 40°C to 90°C

• TUV Rheinland – type approved, UL listed.
